Rooftop type 360° Panorama Camera ~ No.1 Sales


  NM33D-M-PLV

Install The omnidirectional camera on the roof-top of a vehicle to take the 360 degree all around view of the vehicle.

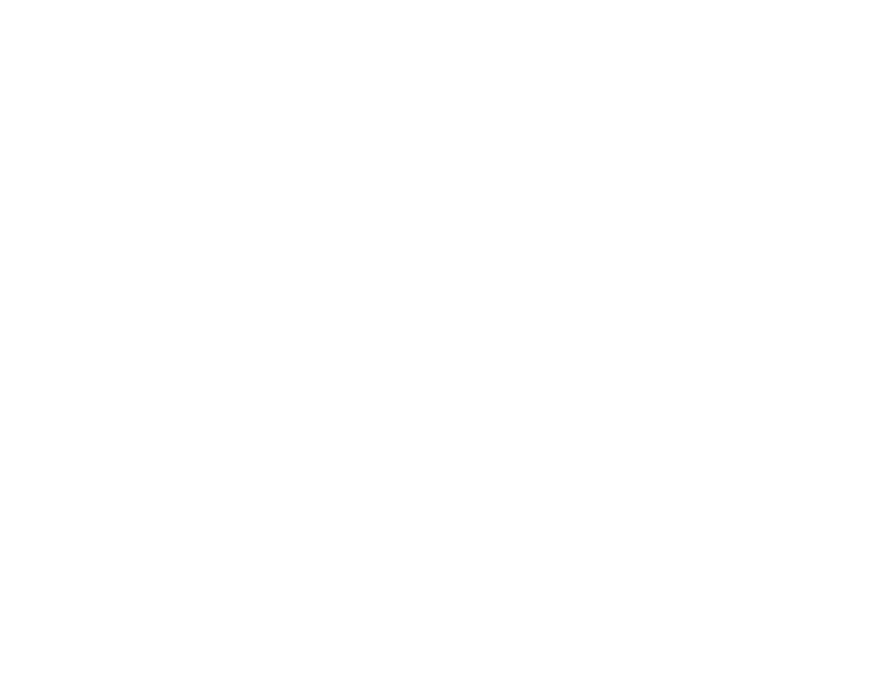

Implementing a specially designed fish-eye lens with the depression angle of 17 degree, the camera can take a view below the roof level.
Connecting to a PC in the vehicle via USB cable, record HD images.

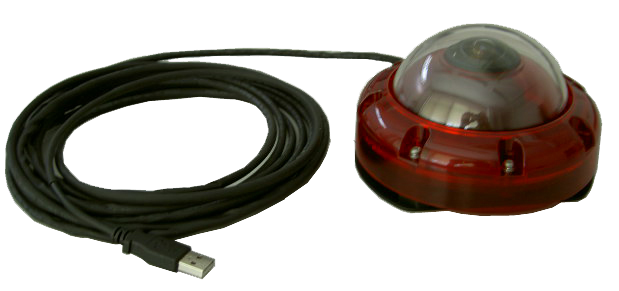

The camera is small and inconspicuous.

Sample Movies

 Rooftop type 360° Panorama Camera 1(MPEG4 image)

An example of video image taken by a Rooftop type 360° Panorama Camera which NM33-M (w/depression angle lens) built-in.
Video taken by the original application software in the 180° panorama x2 mode.
The front 180° image is indicated in the upper half of the display and the rear 180° image is in the lower half.
Frame rate : approx. 6~10 fps

Note 1: Animation to combine the scenes belongs to the Windows Movie Maker.
Note 2: If the image does not play even if you press the play button ▷, try clicking the YouTube logo displayed in the lower right corner of the frame.

POINT!
Distant mountains are clearly visible.
  With our original lens with depression angle, 17° below the lens level is in the view.

Rooftop type 360° Panorama Camera 2(MPEG4 image)

An example of video image taken by a Rooftop type 360° Panorama Camera which NM33-M (w/depression angle lens) built-in.
Video taken by the original application software in the 180° panorama x2 mode.
The front 180° image is indicated in the upper half of the display and the rear 180° image is in the lower half.
Frame rate : approx. 6~10 fps

Scene 1: Highway: Running at about 90km/h backed by the setting sun.
Scene 2: Tunnel
Scene 3: Tokyo city area: Display mode was switched. Car-left image is shown in the upper half and the car-right image is in the lower half.

Note 1: Animation to combine the scenes belongs to the Windows Movie Maker.
Note 2: If the image does not play even if you press the play button ▷, try clicking the YouTube logo displayed in the lower right corner of the frame.

Non-dewarped image(MPEG4 image)

Taken in the Large mode.
Optional software (Refinder) is required to dewarp the non-dewarped image taken in the Large mode.
The frame rate of the video taken in the Large mode os approx. 3 fps.

Note: The image resolution of the above example videos defer from the original camera image due to the YouTube(MPEG4) formatting.

Note 1: Animation to combine the scenes belongs to the Windows Movie Maker.
Note 2: If the image does not play even if you press the play button ▷, try clicking the YouTube logo displayed in the lower right corner of the frame.
